Tile-profile roof system
VANKKA Tile
The proportions of a tiled roof, at a fraction of the load.
- Code
- VT
- Fixing
- Exposed fixing
- Category
- Roofing Systems
Profile cross-section — schematic, not to scale
Overview
VANKKA Tile is rolled with a transverse step that reproduces the shadow and rhythm of a tiled roof across a full sheet. From the street the roof reads as tile; on the drawing it weighs a fraction of one, which matters when you are re-roofing a structure that was never designed to carry concrete.
The step is set out so courses align across adjacent sheets, and the sheet is cut to module length rather than a fixed stock length — a roof plane finishes on a full step instead of a cut course at the ridge.
It is the natural choice for residential replacement work, particularly where planning or a neighbourhood context expects a pitched tiled appearance and the budget or the structure will not carry the real thing.
Applications
- Residential re-roofing
- New build housing
- Developments with tiled-roof context
- Holiday and rural properties
01
Traditional silhouette
Transverse stepping gives the shadow line and course rhythm of a tiled roof from ground level.
02
A fraction of the weight
Steel sheet places a far lighter load on the structure than clay or concrete tile.
03
Cut to module
Sheets are produced in whole-step lengths so courses land correctly at ridge and eaves.
Technical data
Specifications
All VANKKA data is metric. Values are confirmed for your project at quotation and issued with the technical documentation.
Verified technical data for this product is being finalised. The data sheet structure below shows exactly what will be published — request the full technical documentation and our team will send the current figures for your project.
Geometry
Material
Coating
Performance
Warranty & compliance
Finishes
Coating systems and colours
Coating choice is driven by exposure and expected service life rather than by colour. Both are confirmed with your quotation.
Matt Polyester
MPLow gloss, low reflection, contemporary.
Standard Polyester
SPThe volume coating. Proven, economical, widely specified.
Polyurethane
PURBuilt for the Nordic envelope.
Colours available in these coating systems
Pure White
RAL 9010
Grey White
RAL 9002
Light Grey
RAL 7035
Grey Aluminium
RAL 9007
Iron Grey
RAL 7011
Graphite Grey
RAL 7024
Anthracite Grey
RAL 7016
Jet Black
RAL 9005
Light Ivory
RAL 1015
Clay Brown
RAL 8003
Copper Brown
RAL 8004
Chocolate Brown
RAL 8017
Oxide Red
RAL 3009
Brown Red
RAL 3011
Wine Red
RAL 3005
Moss Green
RAL 6005
Chrome Green
RAL 6020
Fir Green
RAL 6009
Gentian Blue
RAL 5010
Steel Blue
RAL 5011
Slate Blue
RAL 5008
Silver Metallic
RAL 9006
On-screen colours are approximations. Coated steel changes appearance with gloss level, surface texture, viewing angle and daylight. Always confirm a colour against a physical VANKKA sample before ordering.
Documentation
Everything you need to specify it.
Data sheets, installation guides, CAD details, declarations of performance and warranty terms. Documents not yet published can be requested directly and will be sent by the technical team.
- RequestTechnical data sheet
Technical data sheet
Data sheetPDF
- RequestInstallation guide
Installation guide
Installation guidePDF
- RequestCAD profile and details
CAD profile and details
CAD filesDWG / DXF
- RequestDeclaration of performance
Declaration of performance
Declaration of performancePDF
- RequestWarranty terms
Warranty terms
WarrantyPDF
Gallery
VANKKA Tile in use
Photography of this product in production and on completed buildings.
VANKKA Tile on a completed building
VANKKA Tile profile detail, raking light
VANKKA Tile in production on the roll-forming line
VANKKA Tile installed — junction and trim detail

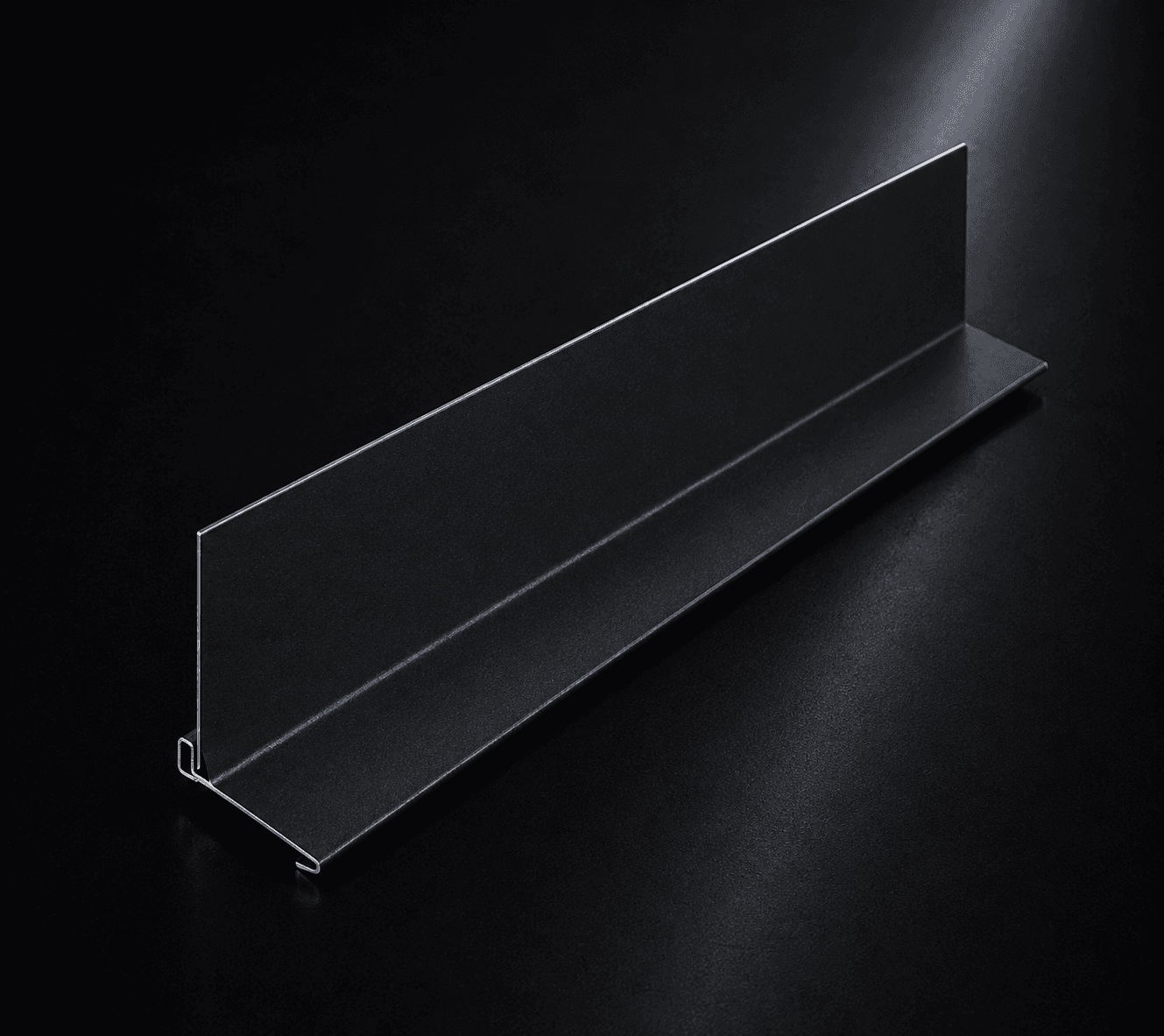

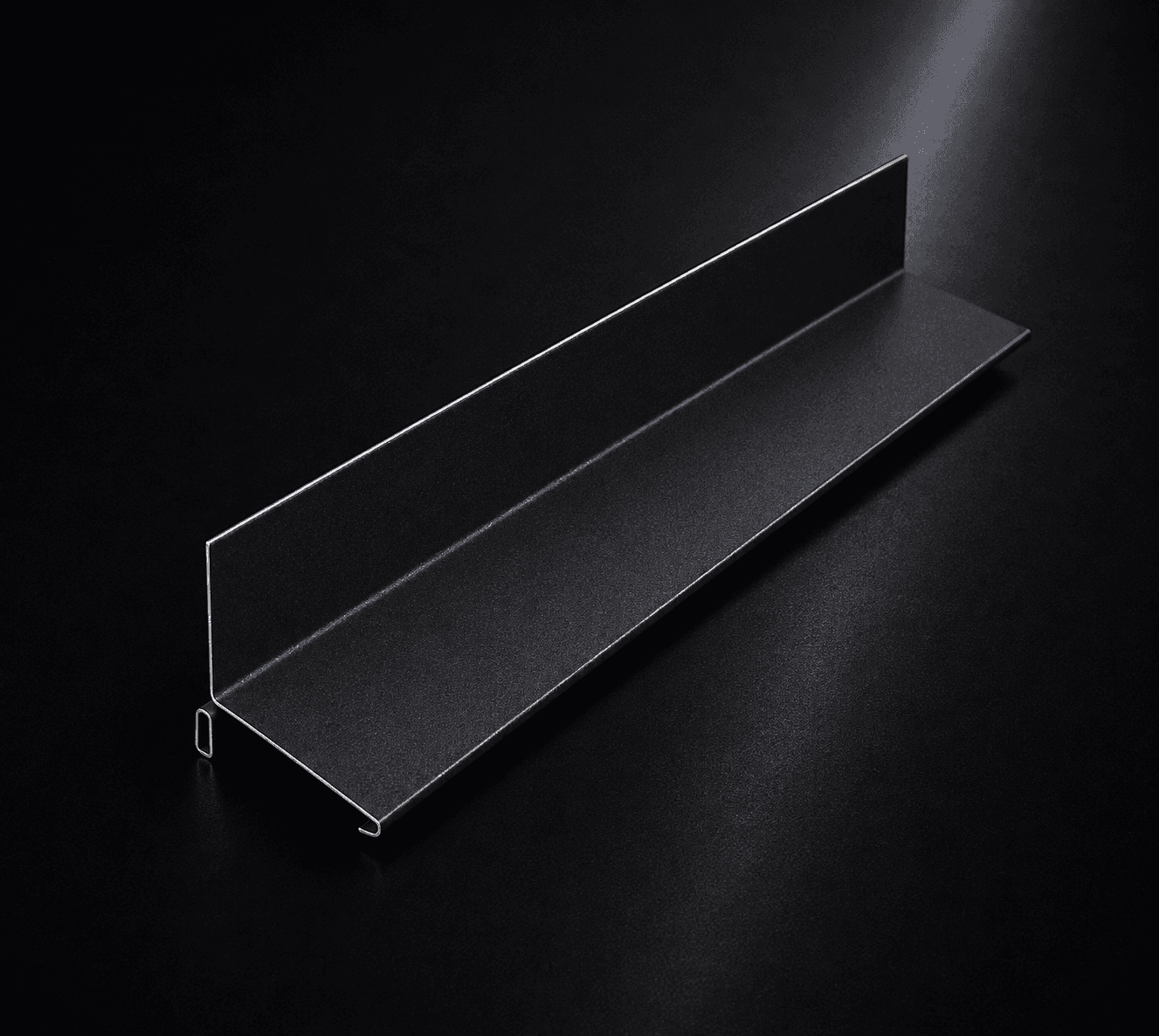

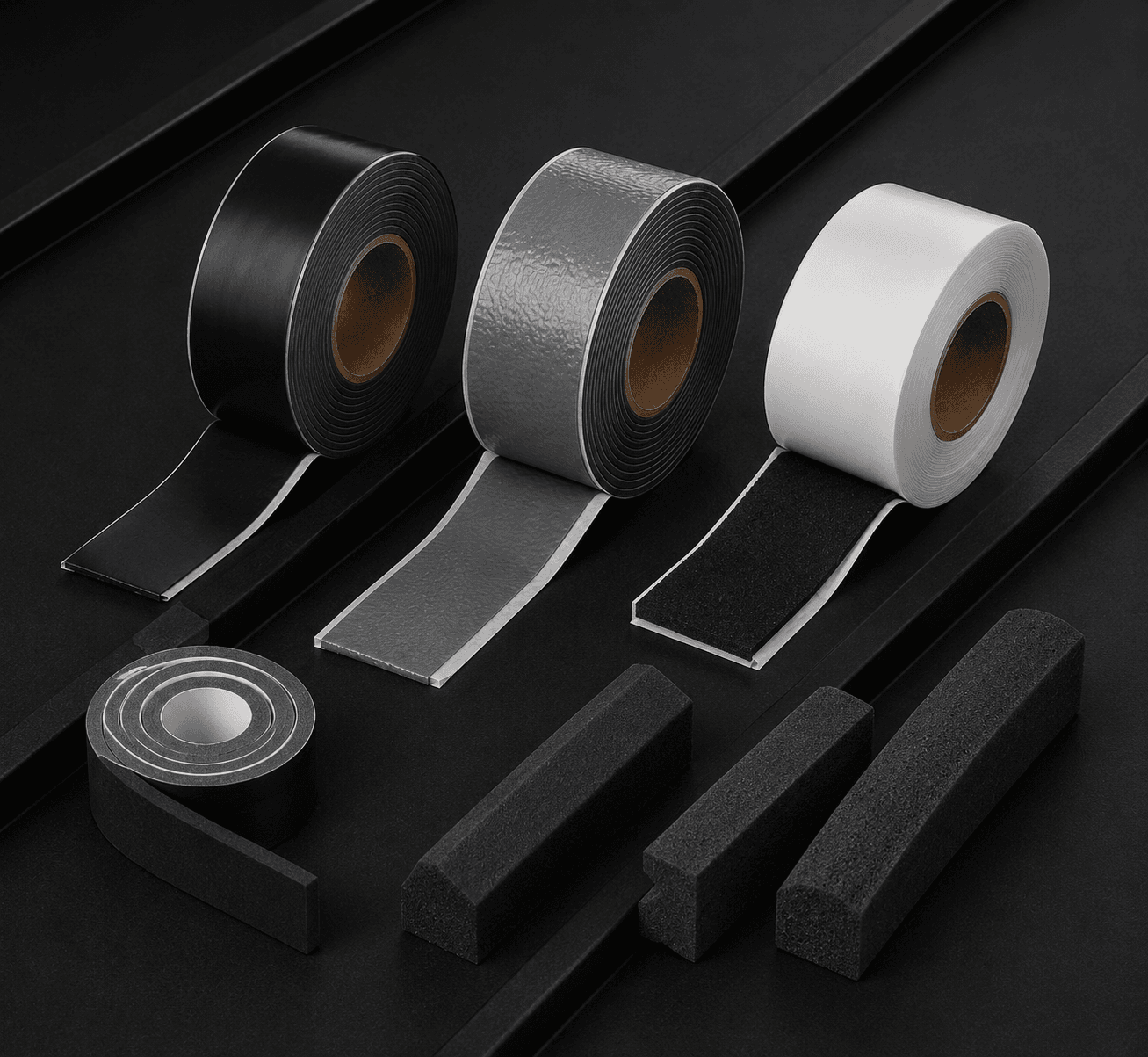

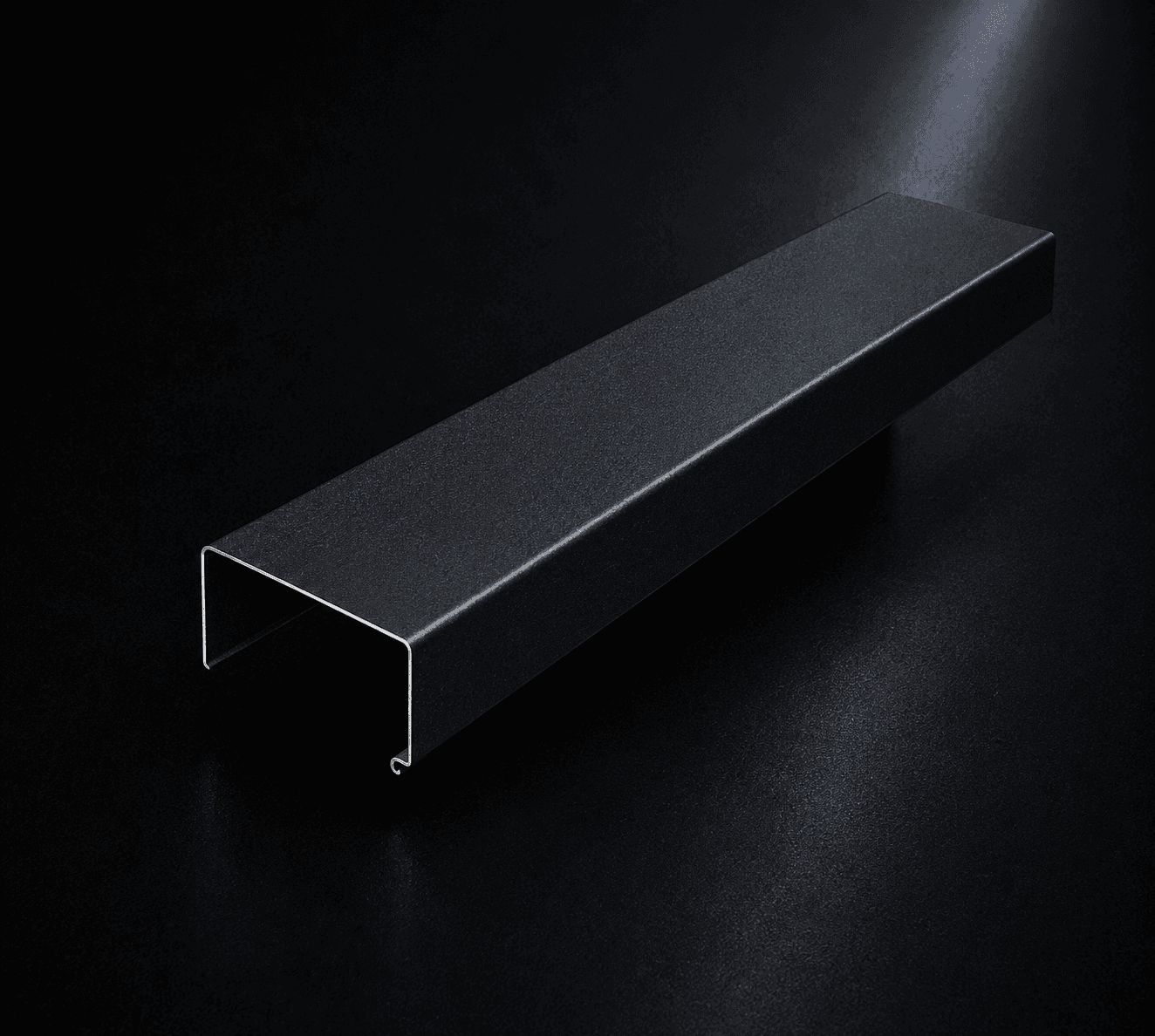

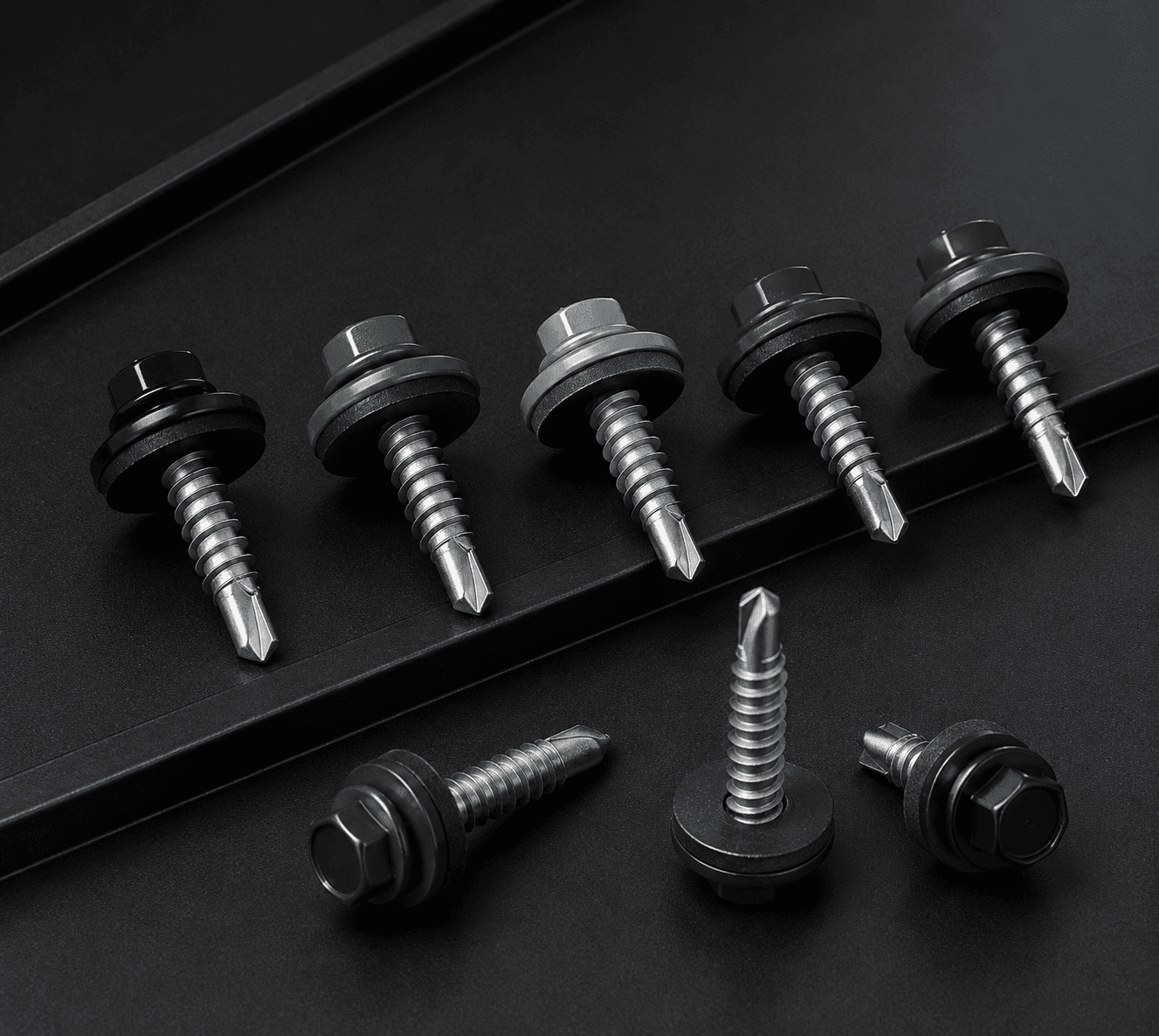

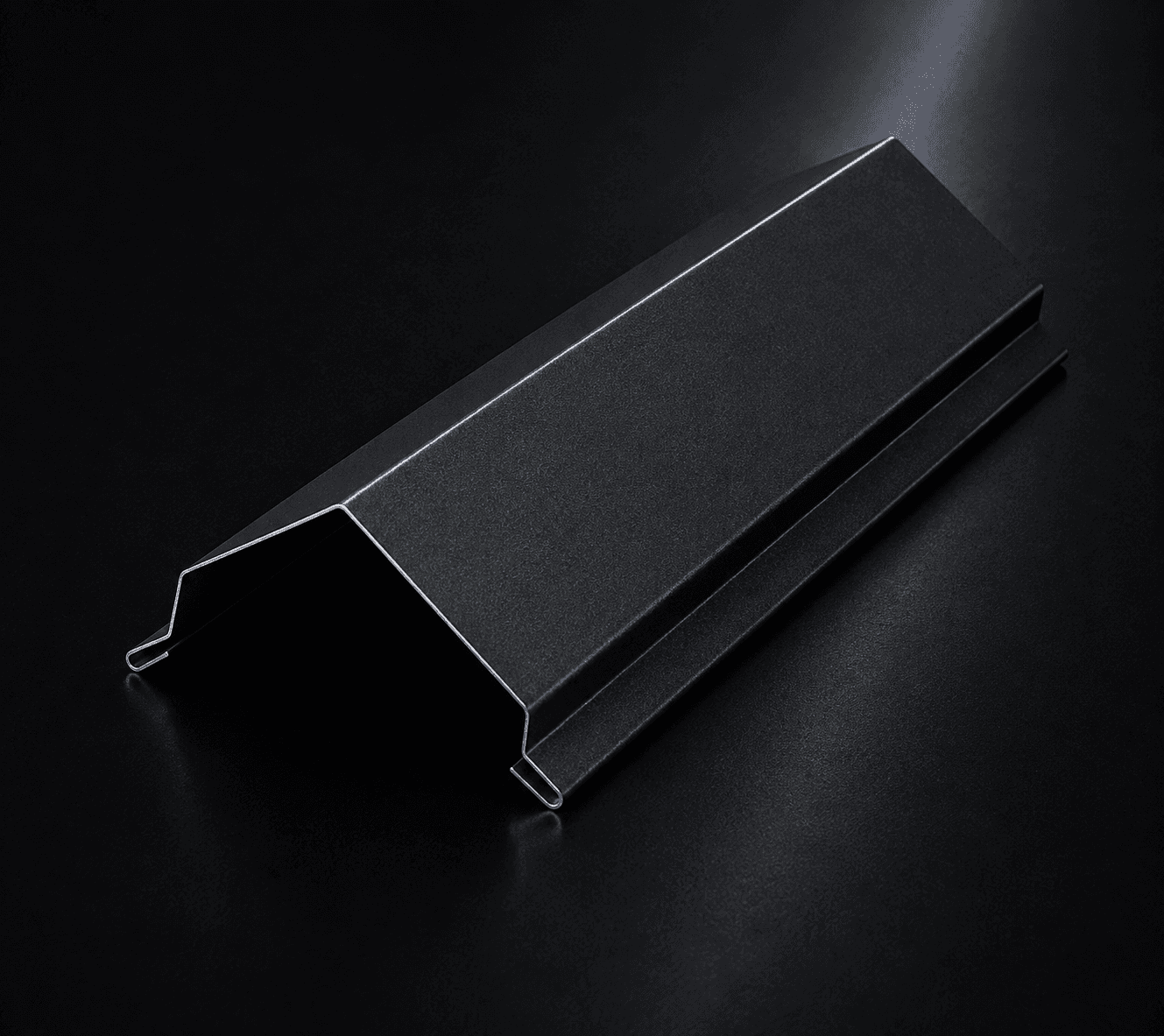

Completes the system
Trims and accessories designed for this product
Ordered with the profile, these come from the same coil and the same batch — so they match exactly.
