Soffit panel system

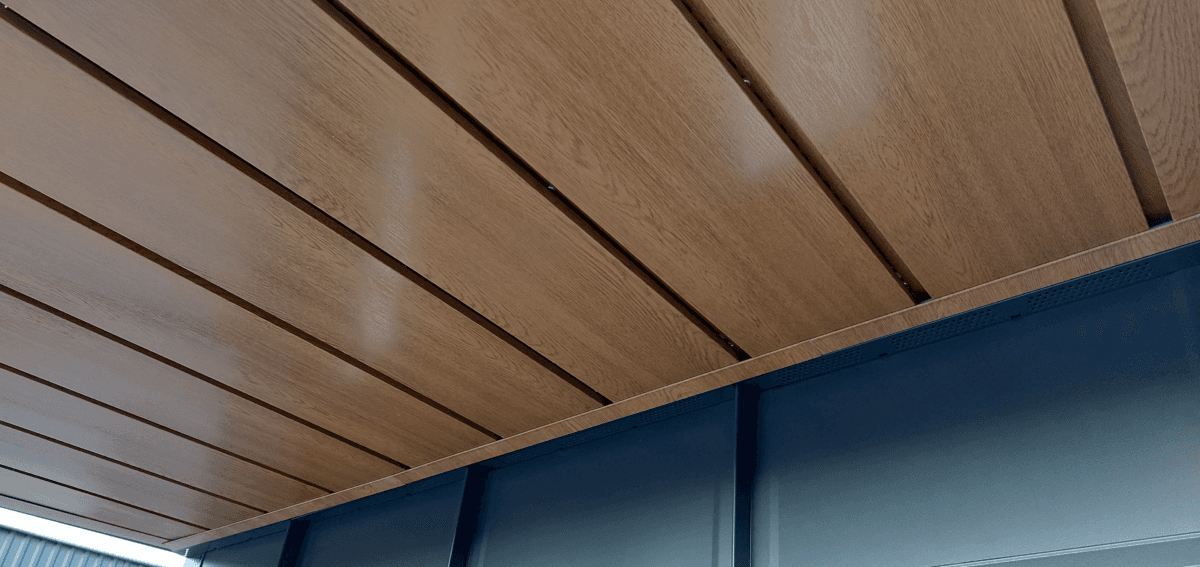

Soffit Panels P01–P02
Soffit lining with an optional ventilation joint.
- Code
- P01–P02
- Fixing
- Concealed fixing
- Category
- Wall & Facade Systems
Overview
Soffit lining panels produced in two versions: P01 without a joint, and P02 with a joint that ventilates through the concealed mounting strip.
Cover width is 205 mm from a 235 mm blank, at 18 mm depth. Lengths run 0.4–1.2 m and 3–3.2 m in 25 mm increments.
Applications
- Eaves and soffit lining
- Ventilated overhangs
- Carports and canopies
01
Ventilating variant
P02 ventilates through the hidden mounting strip.
02
Concealed fixing
Panels fix through a strip rather than face-fixing.
Technical data
Specifications
All VANKKA data is metric. Values are confirmed for your project at quotation and issued with the technical documentation.
