Facade panel system

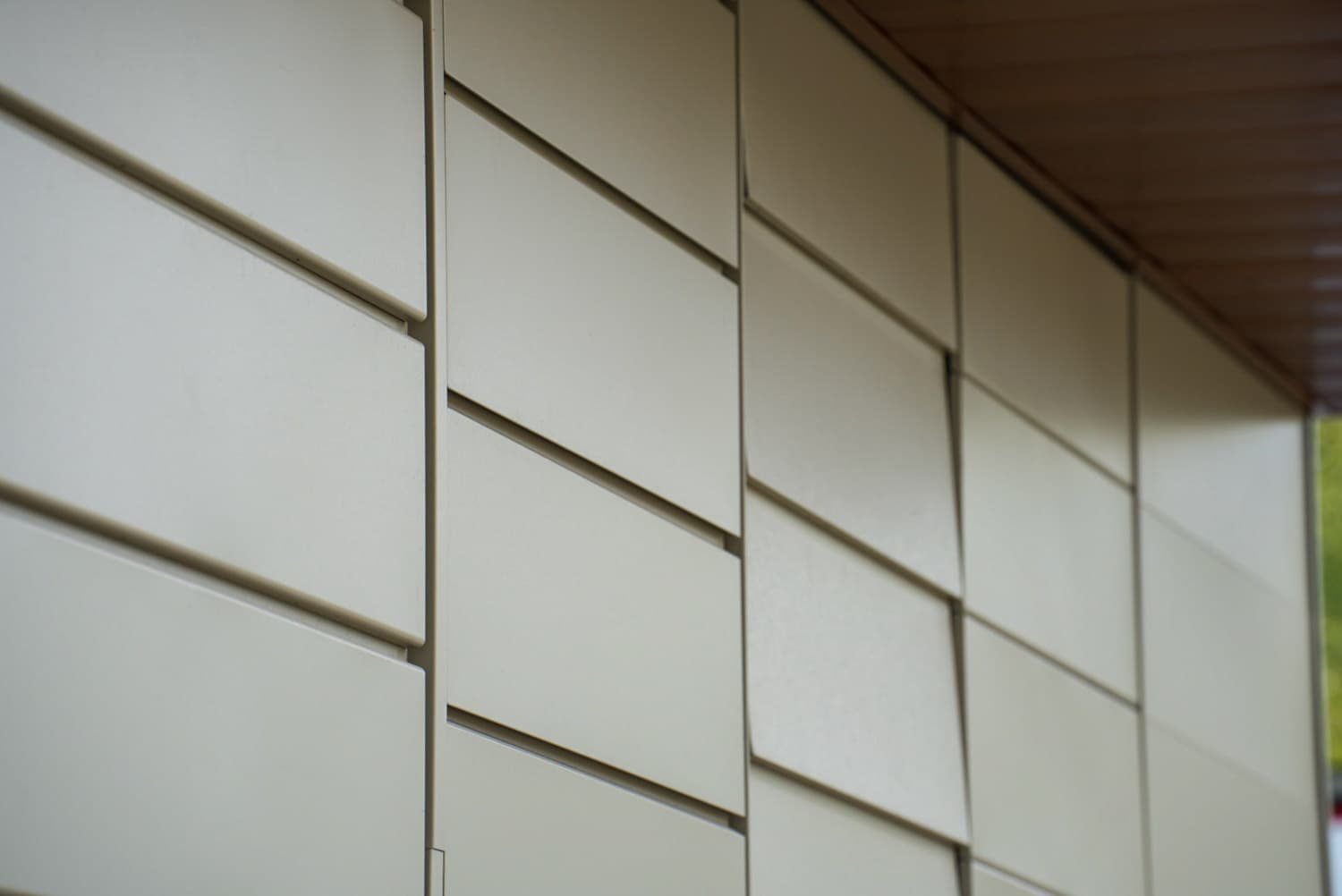

Facade Panels P03–P08
Six panel profiles on a 260 mm cover width.
- Code
- P03–P08
- Fixing
- Concealed fixing
- Category
- Wall & Facade Systems
Overview
A facade panel range of six profiles sharing a common 260 mm cover width, so profiles can be mixed on one elevation without changing the set-out.
Panels stand 18 mm off the substrate and are cut to length between 0.4 and 3.2 m in 25 mm increments. P07 differs slightly at 256 mm cover width.
Applications
- Facade cladding
- Mixed-profile elevations
- Renovation over battens
01
Common cover width
Six profiles share a 260 mm module, so they can be combined.
02
18 mm depth
A shallow build-up over the substrate.
Technical data
Specifications
All VANKKA data is metric. Values are confirmed for your project at quotation and issued with the technical documentation.
