Standing seam system
Standing Seam
Machine-seamed panels in steel, aluminium or zinc.
- Fixing
- Concealed fixing
- Category
- Roofing Systems
Overview
The traditional standing seam, closed with a seaming machine on site. Panels are prefabricated to length and supplied in steel, aluminium or zinc.
Seam height is 27 mm across all materials. Effective panel widths run 325–585 mm depending on material and batch width, with lengths from 0.7 to 12 m.
Material choice changes the working limits: minimum forming temperature ranges from −15 °C to 5 °C, thermal movement from 0.012 to 0.022 mm/m/°C, and maximum panel length from 10 to 30 m.
Applications
- Architectural and civic roofs
- Curved and complex geometry

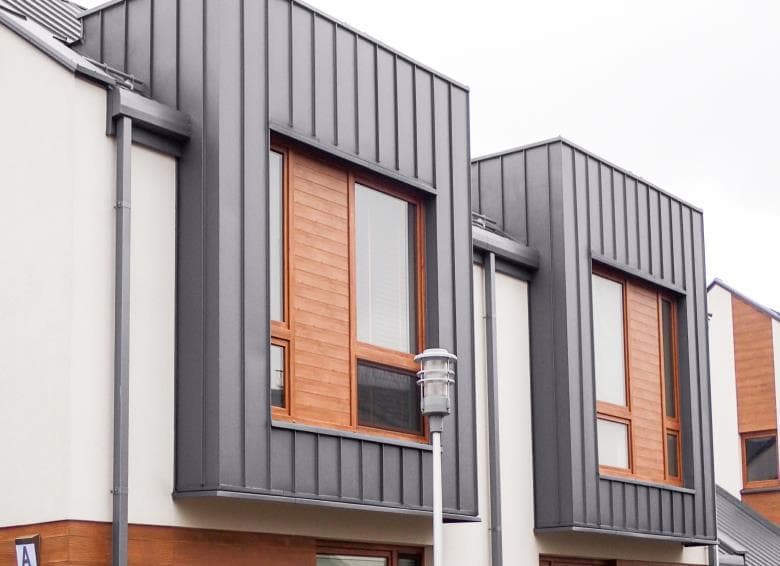

- Facade cladding
Four materials
Steel, PLX steel, aluminium and zinc, each with its own working limits.
27 mm seam
A consistent seam height across every material option.
Technical data
Specifications
All VANKKA data is metric. Values are confirmed for your project at quotation and issued with the technical documentation.
