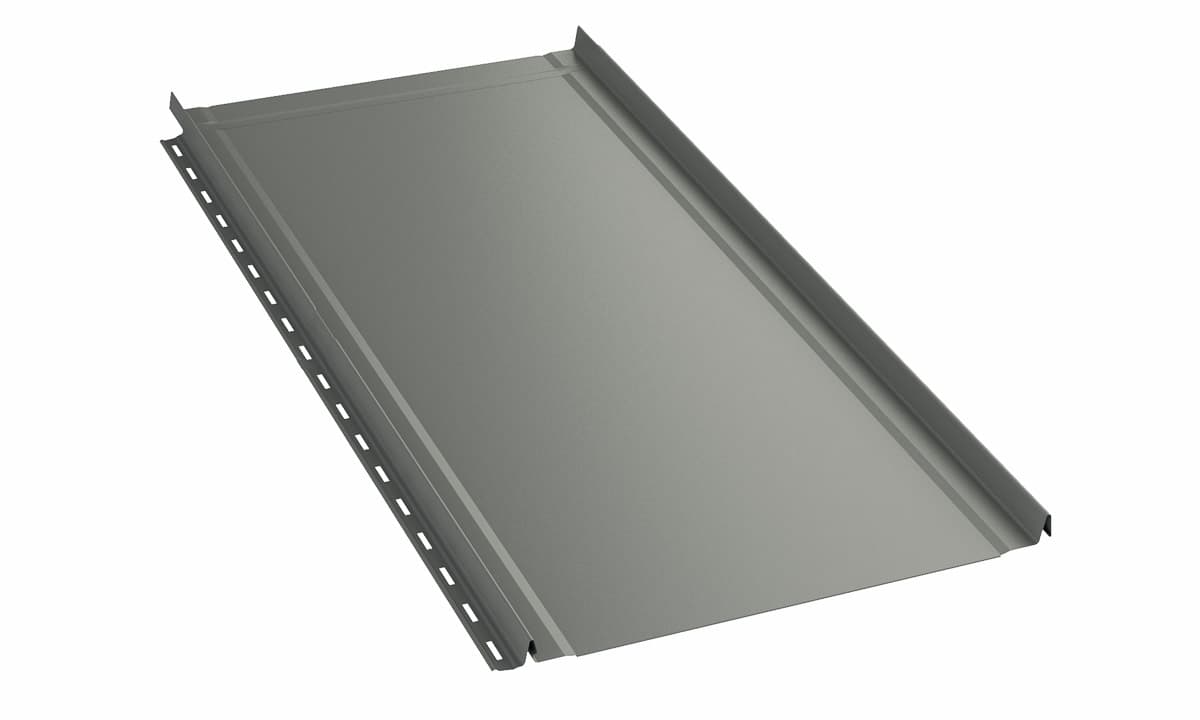

Modular snap-lock seam
Savoy
A snap-lock seam supplied in modules.
- Fixing
- Concealed fixing
- Category
- Roofing Systems
Overview
A snap-lock seam produced as modules rather than continuous panels, joined by a 60 mm overlap, which keeps individual pieces short enough to handle on steeper roofs.
Basic modules run 1.06–4.06 m and supplementary modules 0.56–2.06 m, over a 484 mm cover width. Minimum pitch is 20°.
Applications
- Steeper architectural roofs
- Modular set-out
- Renovation
01
Modular lengths
Basic and supplementary modules set out the plane without long panels.
02
60 mm overlap
A defined module joint rather than a site-formed lap.
Technical data
Specifications
All VANKKA data is metric. Values are confirmed for your project at quotation and issued with the technical documentation.
