Format roof tile

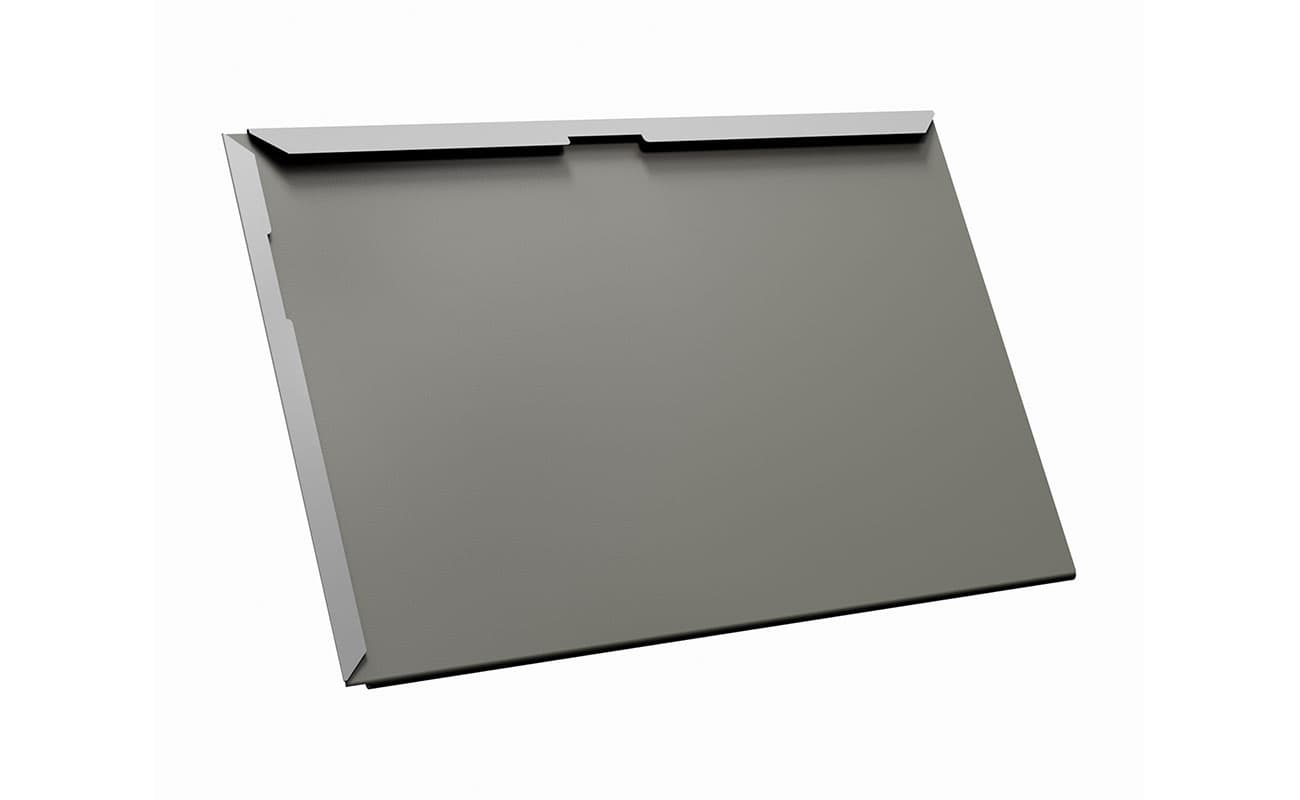

Formia Piano
Rectangular format tiles in three widths.
- Fixing
- Concealed fixing
- Category
- Roofing Systems
Overview
The rectangular counterpart to Formia: a horizontal format tile that reads as banded courses rather than a diamond field.
Three widths are produced — 259.4 mm, 502 mm and 988 mm — covering 0.076, 0.151 and 0.302 m² per piece respectively. Minimum pitch is 12° on a full substrate.
Applications
- Architectural roofs
- Facade cladding
- Banded course detailing
01
Three widths
259.4, 502 and 988 mm for different course rhythms.
02
Full substrate
Laid on continuous decking, minimum 12° pitch.
Technical data
Specifications
All VANKKA data is metric. Values are confirmed for your project at quotation and issued with the technical documentation.
