Format roof tile

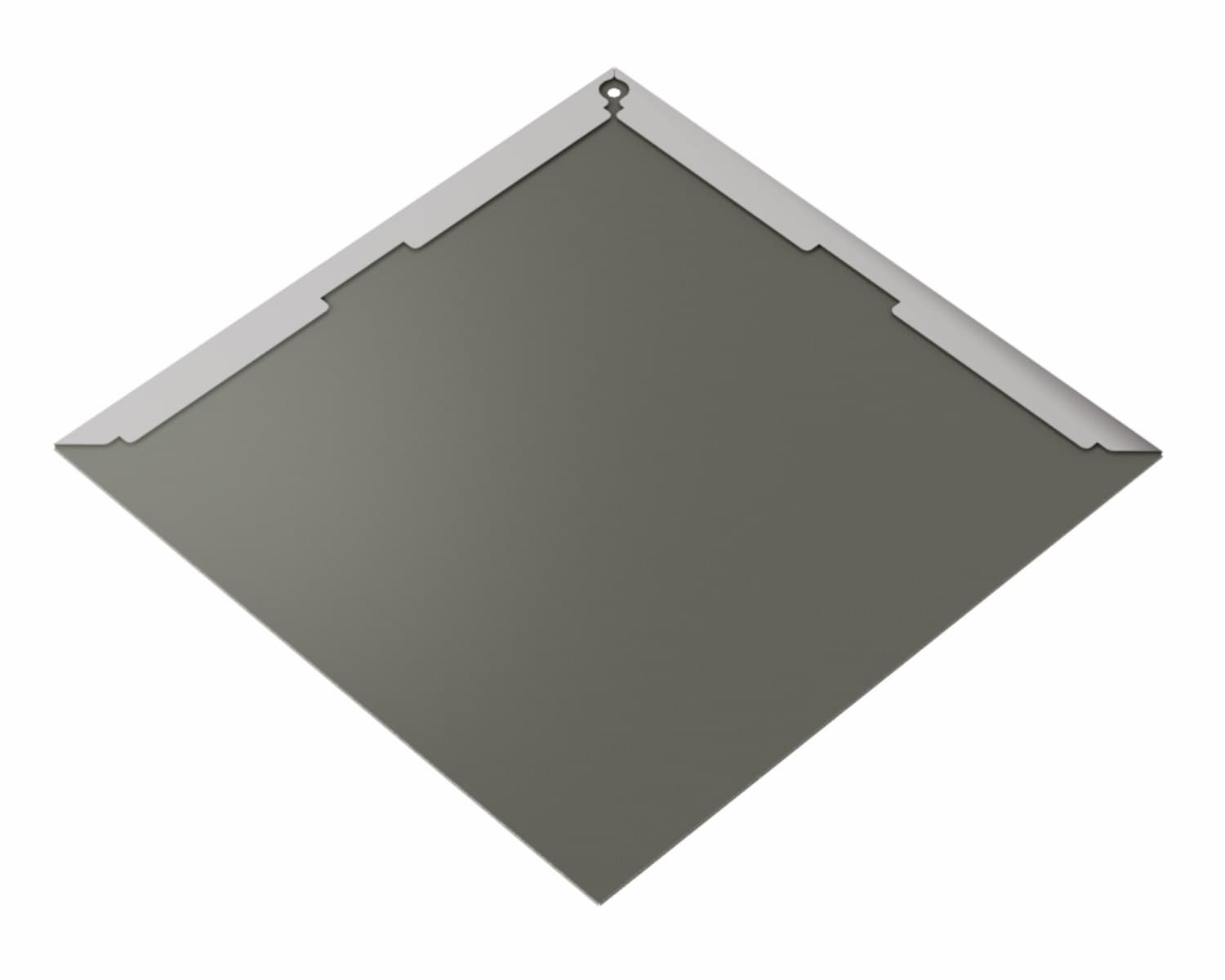

Formia
Individual diamond tiles on a full substrate.
- Fixing
- Concealed fixing
- Category
- Roofing Systems
Overview
A format tile laid piece by piece on a continuous substrate, rather than as a profiled sheet. The result is a small-format diamond pattern with a hand-laid reading.
Two sizes are produced: 350 mm covering 0.106 m² per piece, and 500 mm covering 0.226 m². Base, start, end, left and right tiles complete the field, and clips are supplied with the system.
Minimum pitch is 12° and a full substrate is required. Available in steel, aluminium and zinc.
Applications
- Architectural and heritage roofs
- Facade detailing
- Complex geometry
01
Two formats
350 mm and 500 mm tiles for different pattern scales.
02
Full substrate
Laid on continuous decking with system clips.
Technical data
Specifications
All VANKKA data is metric. Values are confirmed for your project at quotation and issued with the technical documentation.
