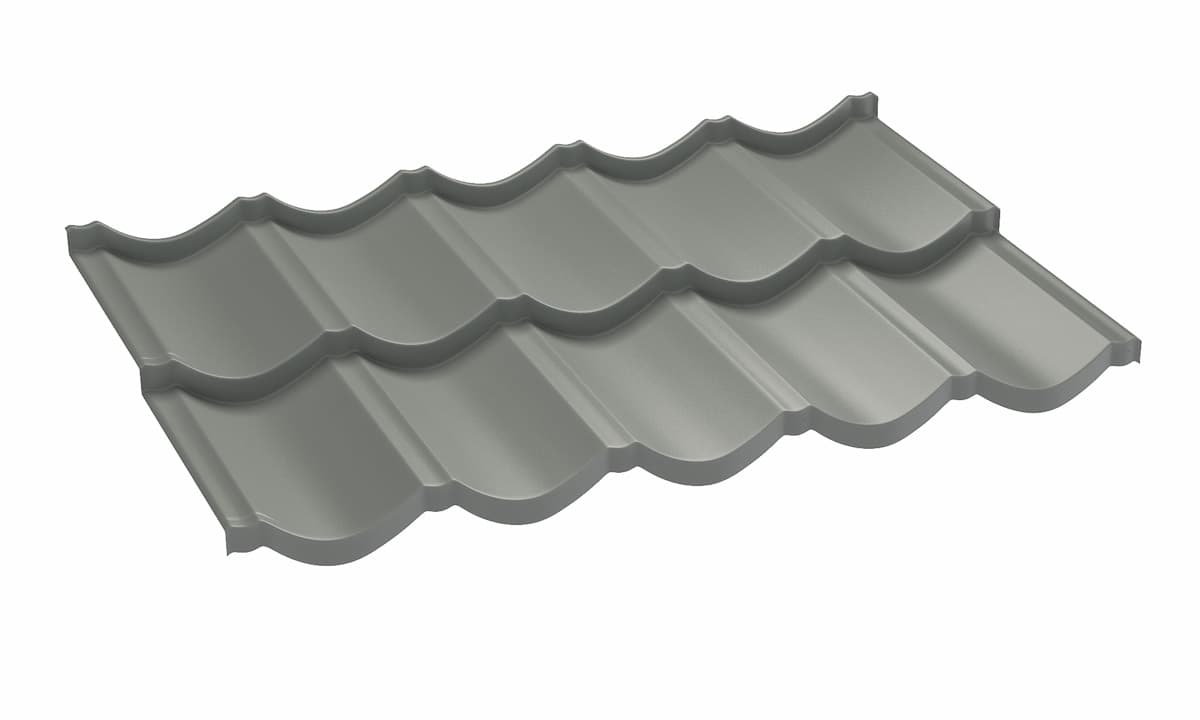

Modular metal roof tile
Scandinavia
A deep tile profile in a 350 mm module.
- Fixing
- Exposed fixing
- Category
- Roofing Profiles
Overview
A modular tile-profile sheet supplied in fixed panels rather than long runs. Each panel covers 0.802 m², so the roof is set out in modules and handled by one person on the batten.
The profile stands 29 mm deep over a 1145 mm cover width, and the minimum pitch is 12°. Panels are formed from 0.5 mm steel and weigh 3.7 kg each.
Applications
- Pitched residential roofs
- Renovation over battens
- Modular set-out
01
Module handling
One panel covers 0.802 m² and weighs 3.7 kg, so setting out does not need lifting gear.
02
12° minimum pitch
Suited to conventional pitched roofs without a shallow-pitch detail.
Technical data
Specifications
All VANKKA data is metric. Values are confirmed for your project at quotation and issued with the technical documentation.
