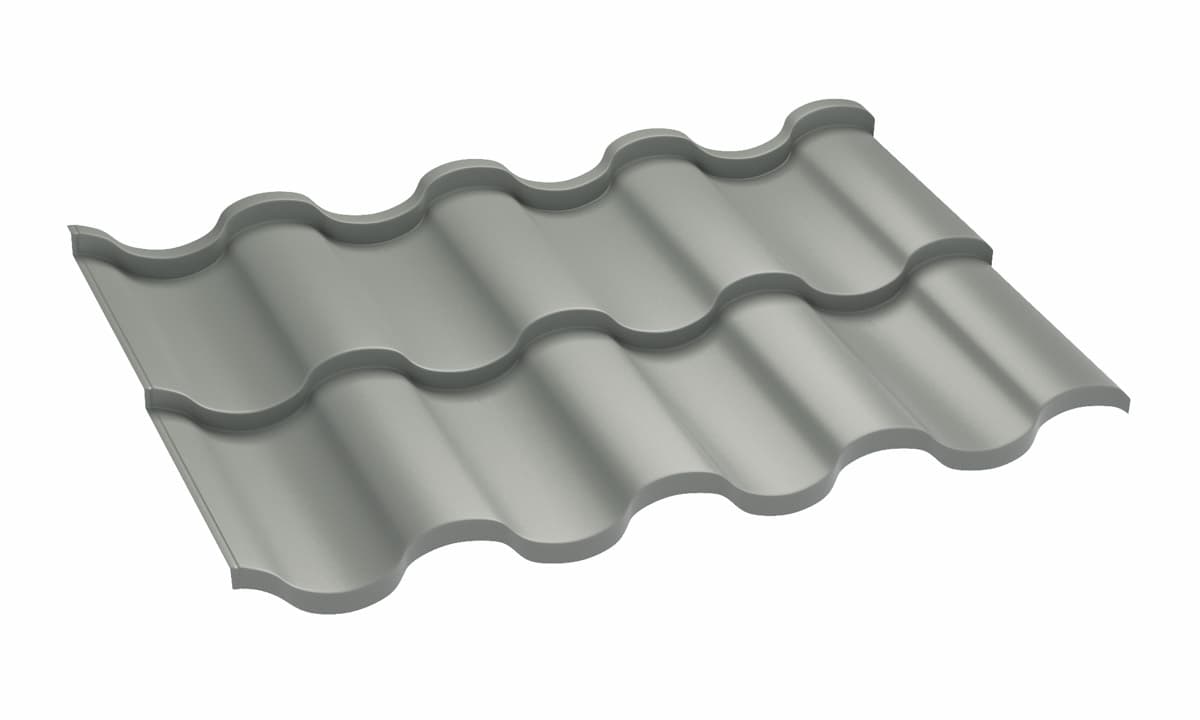

Hybrid metal roof tile
Centro
Tile profile cut to length, up to 3993 mm.
- Fixing
- Exposed fixing
- Category
- Roofing Profiles
Overview
A tile profile produced either cut to length up to 3993 mm or as a fixed two-module sheet, so a roof plane can be covered in fewer, longer pieces than a modular tile allows.
At 40 mm it is the deepest tile profile in the range. Cover width is 1115 mm and minimum pitch is 12°. Available in 0.5 and 0.6 mm steel or 0.6 mm aluminium.
Applications
- Long roof planes
- Cut-to-length set-out
- Pitched residential roofs
01
Cut to length
Panels up to 3993 mm reduce the number of transverse laps.
02
40 mm profile
The deepest tile profile in the range.
Technical data
Specifications
All VANKKA data is metric. Values are confirmed for your project at quotation and issued with the technical documentation.
