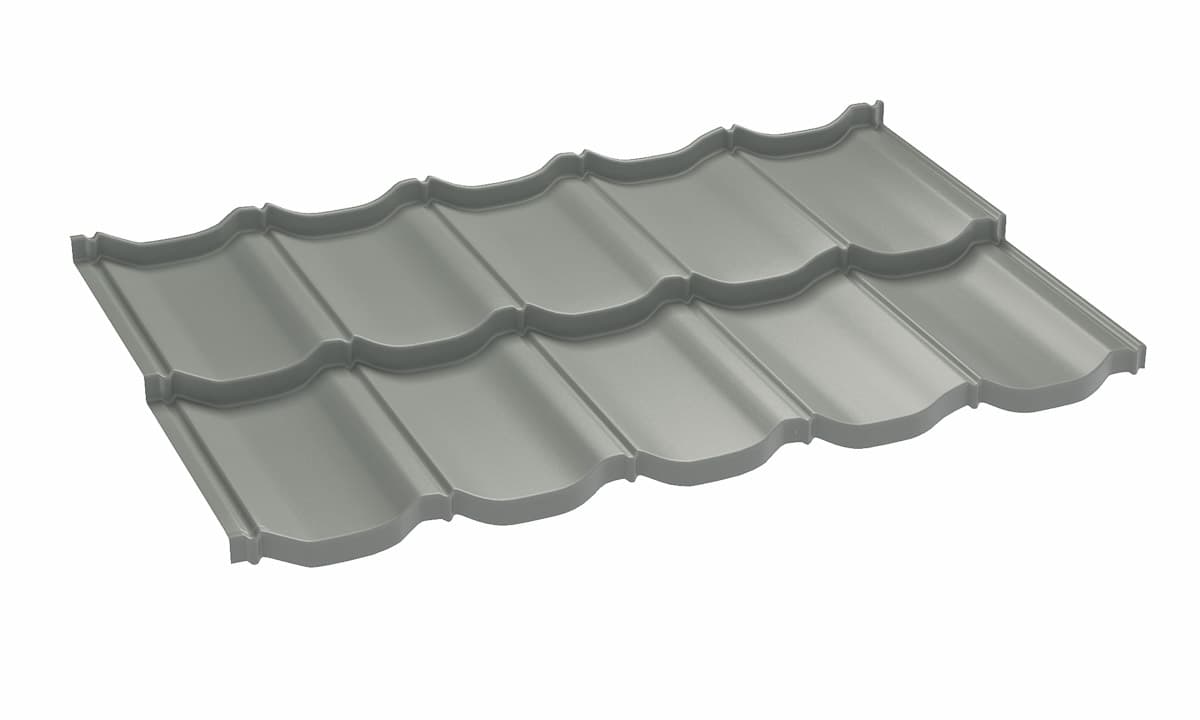

Modular metal roof tile
Aurora
A shallower tile profile on the same 350 mm module.
- Fixing
- Exposed fixing
- Category
- Roofing Profiles
Overview
A modular tile profile drawn shallower than Scandinavia — 19 mm rather than 29 mm — which reads as a finer texture across a large roof plane.
Cover width is 1150 mm and each panel covers 0.805 m². Minimum pitch is 12° and panels weigh 3.7 kg in 0.5 mm steel.
Applications
- Pitched residential roofs
- Large uninterrupted planes
- Renovation over battens
01
Low profile
A 19 mm profile keeps the tile texture restrained on wide elevations.
02
Modular set-out
0.805 m² per panel on a 350 mm module.
Technical data
Specifications
All VANKKA data is metric. Values are confirmed for your project at quotation and issued with the technical documentation.
